AI-Code-Dependency-Visualizer Turns a Python Repo Into an X-Ray of Its Architecture

Most developer tools help you find code. This one helps you find your bearings. In a growing Python repo, the problem is rarely syntax. It is knowing which files shape the system, which imports matter, and where the hidden coupling lives.

That is the promise behind AI-Code-Dependency-Visualizer. It clones a GitHub repo, parses Python source with the standard library AST, builds a dependency graph, and renders the result in ReactFlow with Dagre layout. The output is a map of structure, not a dump of filenames.

The problem is not code. It is orientation.

Once a Python codebase grows past a handful of modules, reading individual files stops being the bottleneck. The bottleneck becomes orientation. You can understand every function and still miss the system shape, because the dependency web is what determines how changes propagate.

This project targets that exact blind spot. It is not trying to explain syntax or generate new code. It is trying to show the skeleton underneath the code, so a developer can see where the system is brittle, clustered, or surprisingly simple.

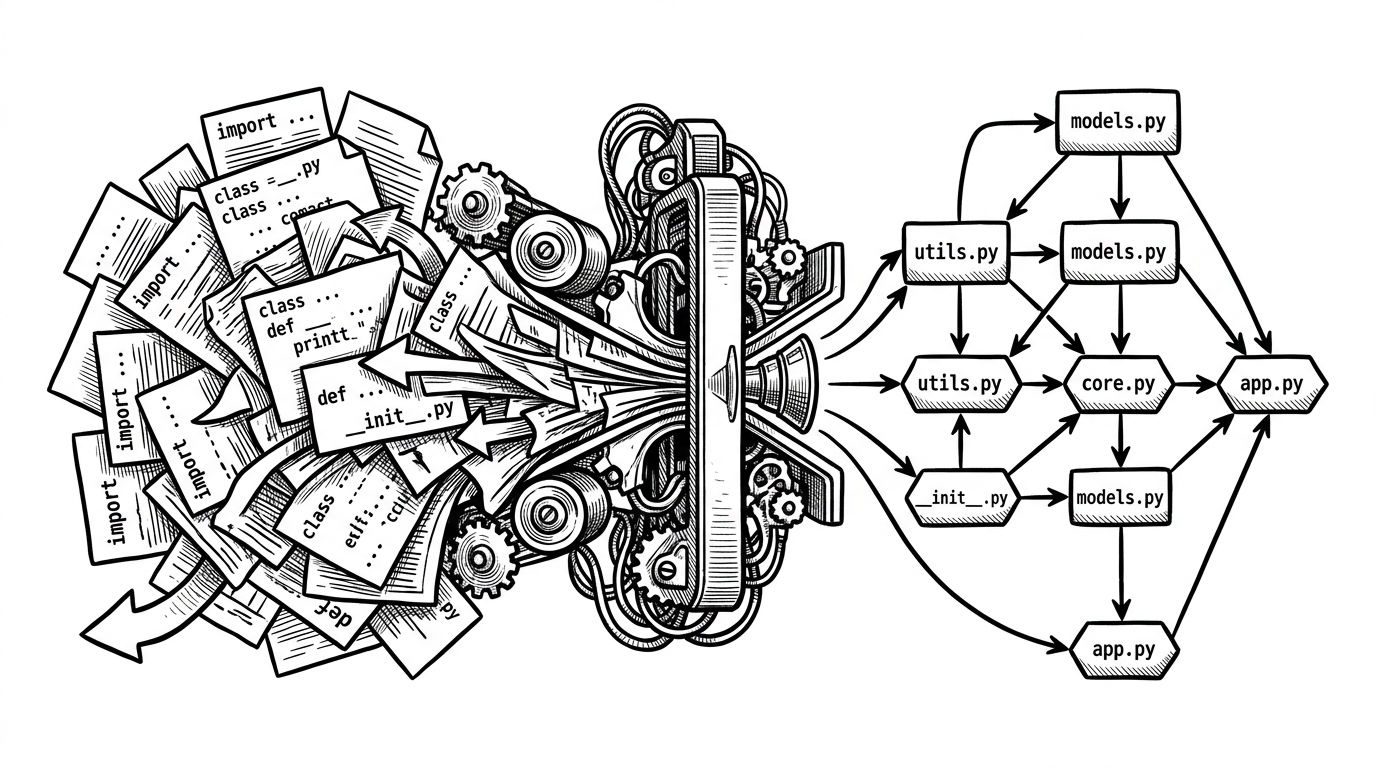

This project turns imports into a map

The backend is straightforward, and that is the point. A user submits a repository URL. The service clones the repo into a local workspace, scans the Python files, extracts imports, and returns nodes plus edges for the frontend to render. Nothing is executed. Nothing is guessed from text search.

The architecture splits neatly into two layers. FastAPI and Python do the analysis work. React, ReactFlow, and Dagre turn the result into something navigable. That separation matters because the backend can stay focused on correctness while the frontend handles interaction and layout.

Why AST beats grep

This is the project’s clearest technical choice. Python’s AST understands syntax. That means it can find real import statements without being fooled by comments, string literals, or coincidental text matches. Grep can tell you where a word appears. AST can tell you where the language actually says a dependency exists.

That difference sounds small until you see the failure modes. A regex can match an import in documentation, in dead code, or in a comment block. The AST only walks actual syntax nodes, so the dependency graph is anchored to Python’s grammar rather than to raw text.

import ast


def get_imports(filepath):
    with open(filepath, 'r', encoding='utf-8') as f:
        tree = ast.parse(f.read(), filename=filepath)

    imports = []
    for node in ast.walk(tree):
        if isinstance(node, ast.Import):
            for alias in node.names:
                imports.append(alias.name)
        elif isinstance(node, ast.ImportFrom):
            if node.module:
                imports.append(node.module)
    return imports

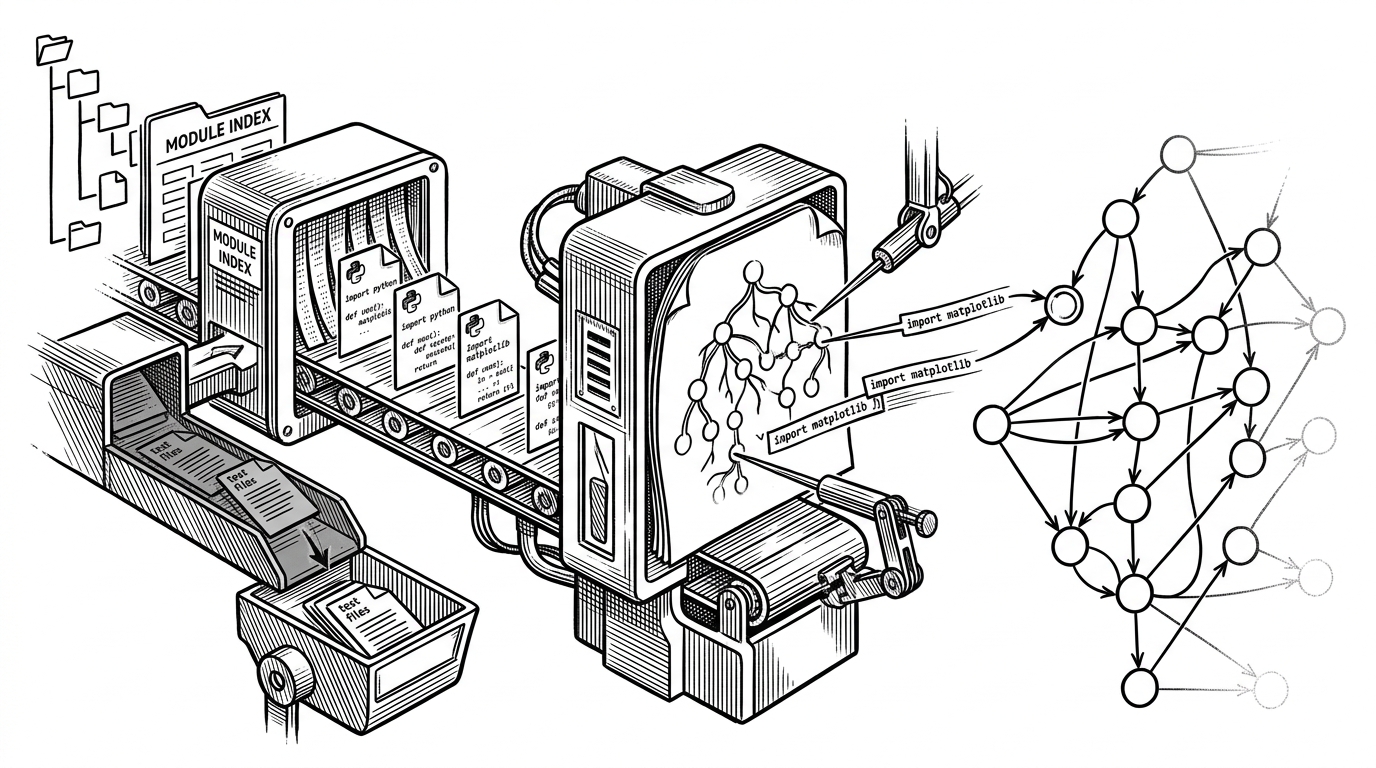

The two-pass graph builder is the real trick

The most interesting part of the backend is not the parser. It is the resolution step. First the tool scans the repository and builds a complete index of Python modules. Only then does it parse each file’s imports and try to match them against that index.

That two-pass design avoids a common trap. If you try to resolve imports while you are still discovering files, the graph becomes partial and noisy. By separating discovery from resolution, the tool can map dependencies more accurately and decide which imports are internal, external, or unresolved.

The result is a directed graph where edge direction matters. File A points to File B because A depends on B. That is a better mental model than a flat list of references, because it shows how control and coupling flow through the system.

How the backend makes the graph trustworthy

• Build a repository-wide module index before resolving any imports.
• Parse only real Python syntax with the AST module.
• Filter out test files so the graph stays focused on core application structure.
• Use a directed graph so dependency direction is explicit, not implied.

The front end is not just decoration

ReactFlow is doing more than drawing boxes and arrows. It makes the graph explorable. Dagre handles the layout math so nodes land in a readable hierarchy instead of a pile of overlapping points. Together, they turn backend data into a working interface for investigation.

That matters because visualization is only useful when the user can trace a path. A static image can show complexity. An interactive graph can show how a particular module sits inside that complexity, and what else it touches.

What it gets right, and what it does not yet solve

The prototype shows good engineering instincts. It uses a UUID-based clone workspace to avoid collisions between requests, and the code is split cleanly across backend analysis, graph building, and frontend rendering. Those are the right seams for a tool like this.

But the rough edges are real. There is no obvious cleanup story for cloned repos, so long-running use could fill disk. There is no caching layer for repeated analyses. And the graph intentionally excludes test files, which keeps the map cleaner but also narrows what the user sees.

That is not a flaw so much as a statement of scope. The project is solving comprehension first. It is not trying to be a full repository intelligence platform yet.

Where this sits in the tooling landscape

This is adjacent to dependency scanners, but it is not the same category. Tools like Dependabot and Snyk are built around packages, versions, and risk. This project is built around source code structure. One answers what is vulnerable. The other answers what depends on what.

That distinction is why the project feels useful even without AI doing the heavy lifting. The interesting intelligence is not in prediction. It is in translation: turning syntax into structure that humans can reason about quickly.

The better mental model

The strongest version of this project is not as a novelty graph. It is as an orientation layer for unfamiliar systems. For a new engineer, a founder reviewing inherited code, or a PM trying to understand why a repo feels fragile, that saves time immediately.

The broader lesson is simple. Most code tools optimize for precision on individual files. This one optimizes for understanding the whole. That is a different job, and in many repos it is the more valuable one.
