Cowart Turns a Whiteboard Into an AI Control Surface

Inside the Codex plugin that stores visual state locally, reads red annotations as intent, and uses MCP to let an agent place and revise images with spatial precision.

6-7 min read • View on GitHub • More from zhongerxin

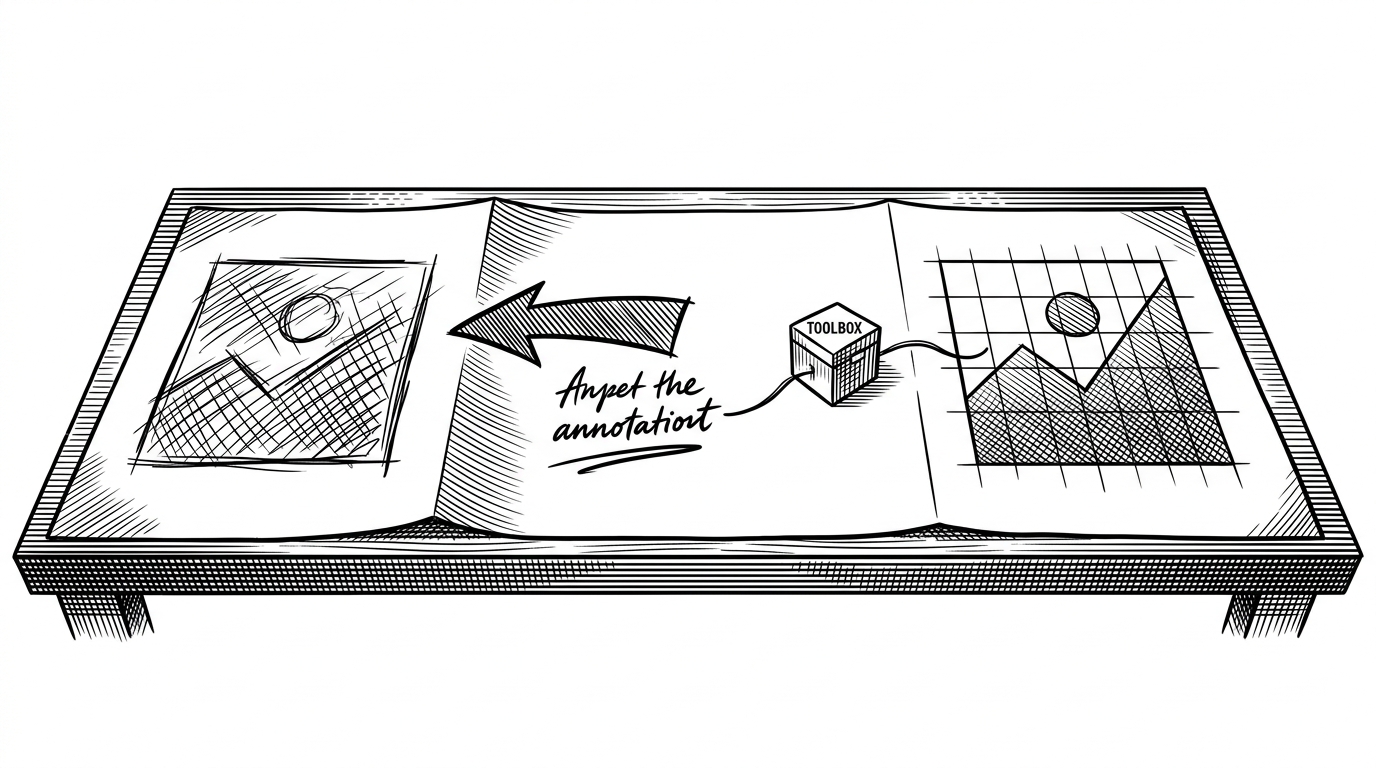

A wide desk-scale scene shows a canvas split into three zones: a rough image placeholder on the left, a red annotation arrow and note in the center, and a cleaned-up image placed neatly on the right. A thin line links the annotation to a small MCP tool box and then to the inserted result, showing how visual intent becomes an edit. — Cowart turns annotation into action. The canvas is not just where images live. It is where intent gets translated into a precise tool call.

Key Takeaways

Cowart replaces the prompt box with a visual brief, so red annotations and object placement become the language the agent reads.
Its real advantage is local state: images, canvas data, and edit history stay inside the project instead of drifting into a separate cloud workspace.
The MCP bridge matters because it makes Codex an actor on the canvas, not just a text generator reacting to screenshots.
Fractional indexing is the quiet detail that keeps repeated inserts stable instead of turning the layer stack into a brittle reorder mess.

The prompt box is the wrong interface

Cowart’s core move is simple and strange: it asks you to draw the edit instead of describing it in prose. A red arrow, a note, and a positioned placeholder are not decoration. They are the brief.

That matters because image work is spatial. If you want an object moved, cleaned up, or replaced, a canvas gives the model the same kind of context humans use. The repo’s own README frames it this way: Cowart puts a visual canvas inside Codex so you can place placeholders, annotate them, and get images back in the right spot.

Cowart lấp một khoảng trống thực sự trong workflow AI coding: không gian trực quan để làm việc với ảnh, ngay trong môi trường Codex. Thay vì sinh ảnh trong chat rồi tự quản lý file, bạn có canvas gắn với project - ảnh ở đúng vị trí, lịch sử chú thích được giữ lại, tất cả commit được cùng code.

ZHONG XIN, Project Creator · zhongerxin/Cowart - Vietnamese README

Why local matters more than it sounds

Cowart stores canvas state and image artifacts inside the project directory, under the user’s own working tree. That is not just a privacy argument. It makes the canvas part of the repo’s state, which means the visual work can travel with the code, be reproduced later, and survive beyond a browser session.

Dimension	Cowart	Chat-based image tools	Standalone canvases
Where state lives	Inside the project canvas folder	In the chat product’s cloud history	Usually local or synced separately
How edits are expressed	Annotations and spatial placement	Text prompts	Manual dragging and drawing
Who can act on the surface	Codex through MCP	The chat model only	The human user
Why it helps	Visual intent stays tied to the repo	Fast generation, weak spatial memory	Good sketching, weak agent control

Cowart’s local-first model keeps the canvas tied to the project while the MCP bridge turns that state into something Codex can read and modify.

The bridge between Codex and canvas

The project’s MCP server is where the trick becomes concrete. Cowart exposes tools such as get_cowart_selection and insert_cowart_image, so Codex can inspect canvas state and then act on it. The result is not a chat reply. It is a placement, an insertion, a revision.

The UI stays current through server-sent events, which means local disk changes can push back into the canvas without a manual refresh. That is a small implementation choice with a large effect. The surface feels live because the state is actually live.

// Conceptual flow in Cowart
const selection = await mcp.callTool('get_cowart_selection')
const key = generateKeyBetween(beforeKey, afterKey)
await mcp.callTool('insert_cowart_image', {
  selection,
  indexKey: key,
  imagePath: nextImagePath
})

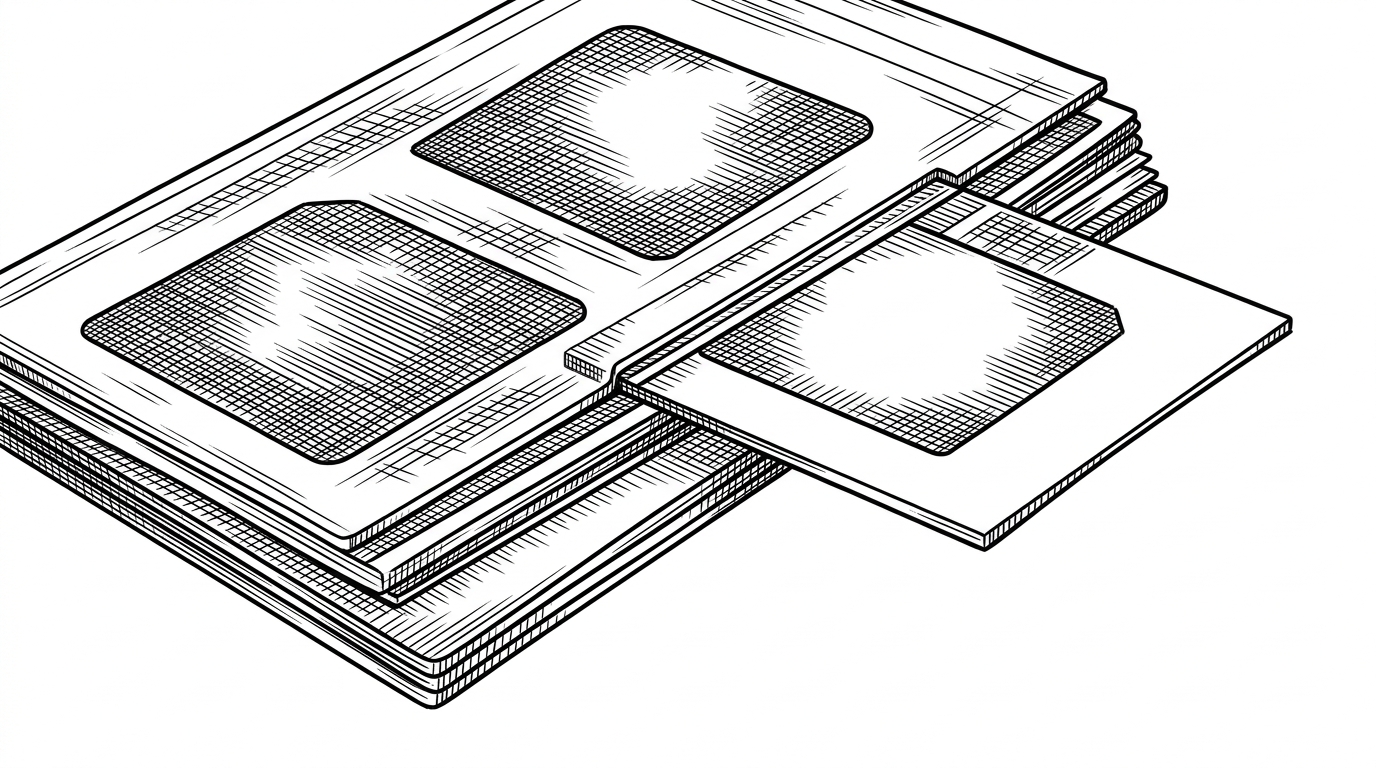

A close-up shows two stacked canvas tiles with a thin empty gap between them. A narrow index strip slides into the gap and a new image tile lands precisely there, while neighboring tiles stay in place. The image explains how stable ordering works without reindexing the whole stack. — Fractional indexing lets Cowart insert new images between existing ones without rebuilding the entire order every time.

Why fractional indexing is the quiet superpower

This is the detail that keeps the whole system from feeling toy-like. Instead of renumbering everything when a new image is inserted, Cowart uses fractional indexing to generate a position between two existing items. The stack stays stable, which matters when repeated AI edits need to preserve visual order.

That stability is not glamorous, but it is exactly what makes the canvas usable as a working surface. If the order breaks, the conversation breaks with it.

import { generateKeyBetween } from 'fractional-indexing'

const nextKey = generateKeyBetween(beforeKey, afterKey)
// Inserts between two existing items without shifting the entire list

What Cowart inherits from tldraw, and what it changes

Cowart does not reinvent the canvas engine. It builds on tldraw and extends it with custom image holders, annotation tools, and the logic needed to make annotations machine-readable. That is a smart layer to own. The base canvas stays flexible, while the workflow gets opinionated.

Layer	tldraw or Excalidraw	Cowart
Canvas engine	General-purpose whiteboard	General-purpose whiteboard plus AI workflow rules
Primary user	Human	Human plus Codex agent
Edit loop	Draw, share, revise	Annotate, screenshot, insert, revise
State model	Often local-first, sometimes synced	Project-local canvas state tied to the repo

Where it fits in the AI canvas landscape

Cowart is not trying to beat Figma at Figma things, and it is not trying to beat chat tools at instant prompting. It sits in a narrower lane: local, inspectable, agent-operable visual work tied to an active project. That is a different product shape entirely.

If you want a fast prompt-to-image loop, chat tools are easier. If you want a general whiteboard, tldraw and Excalidraw are enough. If you want an AI agent to read a visual brief, act on a canvas, and keep the result inside the project, Cowart is the sharper instrument.

Tool class	Strength	Blind spot
Chat-based image generation	Fast generation from text	Weak spatial context and weak project memory
Standalone canvases	Natural visual thinking	No built-in agent action loop
Proprietary AI design tools	Integrated editing	Cloud-heavy and less inspectable
Cowart	Local visual control surface for Codex	Narrower scope by design
